APsystems Accessories

APsystems offers a range of accessories to ensure proper installation and function of our microinverter systems. See your installation manual or contact our technical support department to determine the proper, certified APsystems accessories for your application.

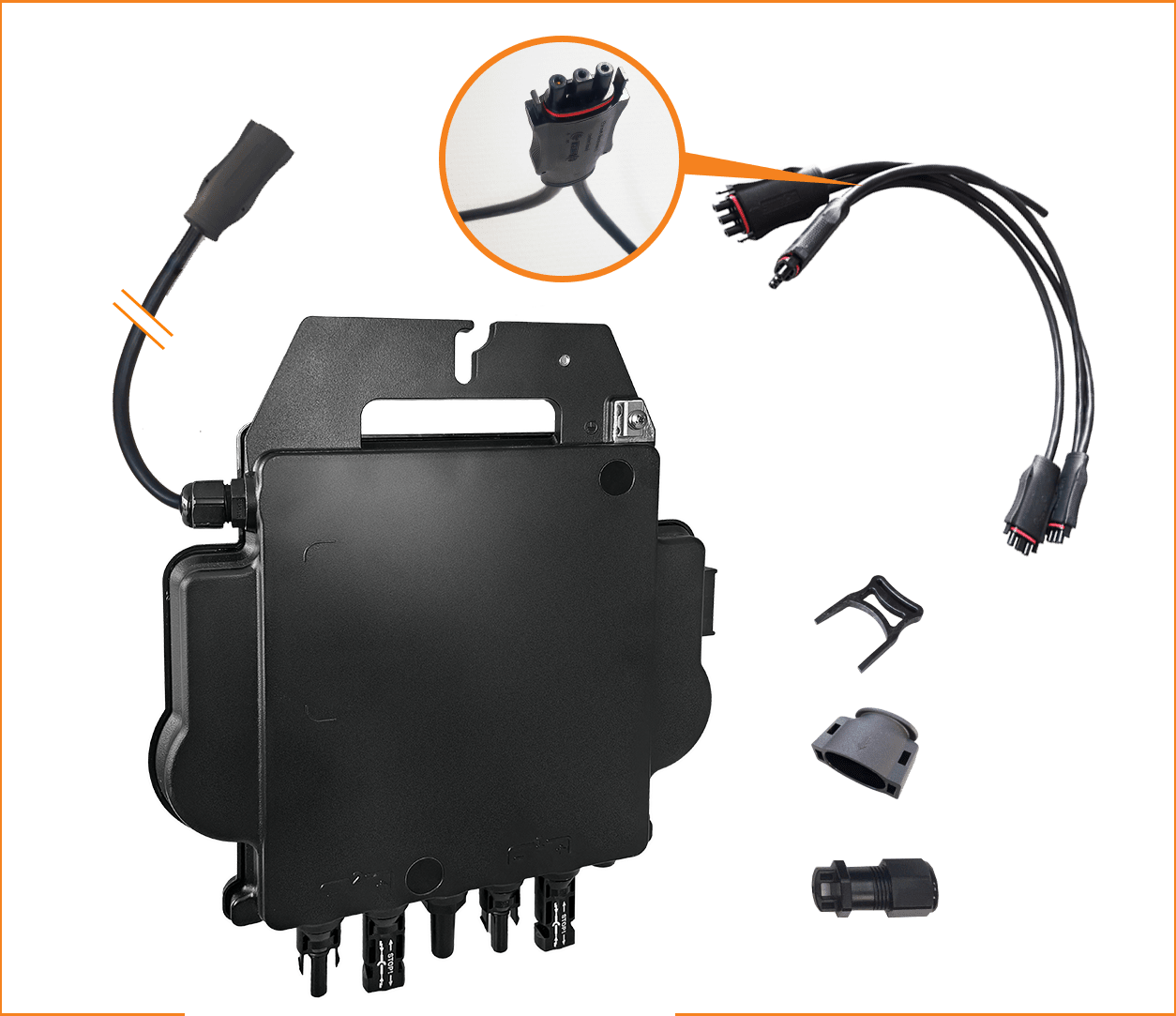

APsystems DS3D

1
2
3
4
1

DS3D AC Bus

  • Provides the junction of the inverter’s AC output side and grid connection
  • CSA/TUV certified
  • 2,5mm2 (12AWG),U-1000-RO2V ( TC-ER)
  • 3-wire (includes internal ground)
  • Drop length: 2M or 4M options
2

DS3D AC Connector Unlock Tool

  • Unlocks the inverter and AC Bus
3

DS3D AC Bus T-CONN Cap

  • Protects the unused T-CONN on the AC Bus
4

DS3D AC Bus End Cap

  • Applicable models:YC500i & YC600
  • Provides water proof for the end of AC Bus

APsystems QT2

1
2
3
4
1

QT2 AC Bus

  • Provides the junction of the inverter’s AC output side and grid connection
  • CSA/TUV certified
  • 2,5mm2 (12AWG),U-1000-RO2V ( TC-ER)
  • 3-wire (includes internal ground)
  • Drop length: 2M or 4M options
2

QT2 AC Connector Unlock Tool

  • Unlocks the inverter and AC Bus
3

QT2 AC Bus T-CONN Cap

  • Protects the unused T-CONN on the AC Bus
4

QT2 AC Bus End Cap

  • Applicable models:YC500i & YC600
  • Provides water proof for the end of AC Bus

APsystems YC600B

1
2
3
4
5
1

YC600B AC Bus

  • Provides the junction of the inverter’s AC output side and grid connection
  • CSA/TUV certified
  • 2,5mm2 (12AWG),U-1000-RO2V ( TC-ER)
  • 3-wire (includes internal ground)
  • Drop length: 2M or 4M options
2

YC600 AC Connector Unlock Tool

  • Unlocks the inverter and AC Bus
3

YC600AC Bus T-CONN Cap

  • Protects the unused T-CONN on the AC Bus
4

YC600 AC Bus End Cap

  • Applicable models:YC500i & YC600
  • Provides water proof for the end of AC Bus
5

Pair of MC4 Caps (Male and Female)

Part No. MC4 Caps

  • Female cap is used to cover and protect unused MC-4 male connector coming from second pair of YC600 DC connections.
  • Male plug is used to protect unused MC-4 female connector in same application.
